Angle & Flat

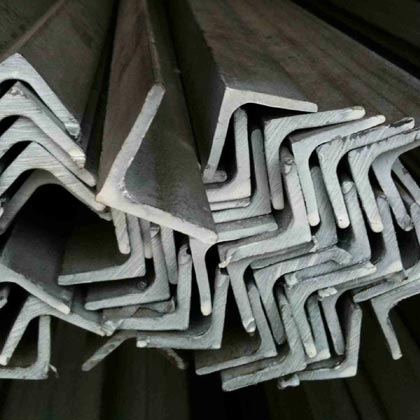

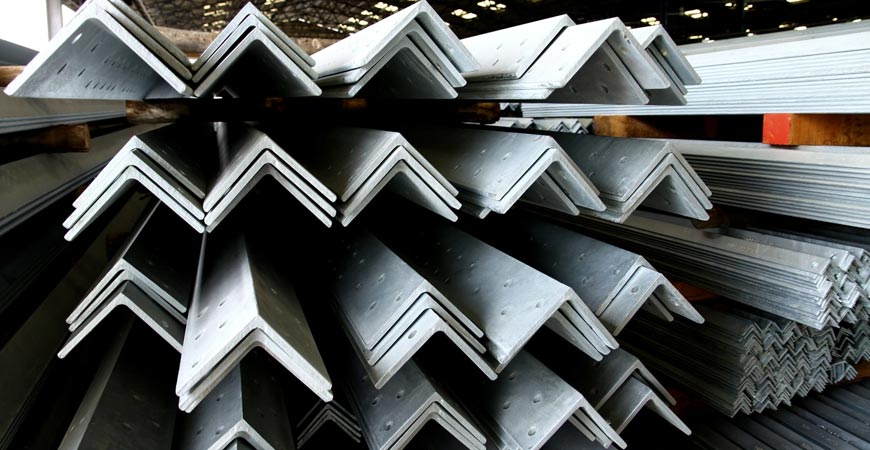

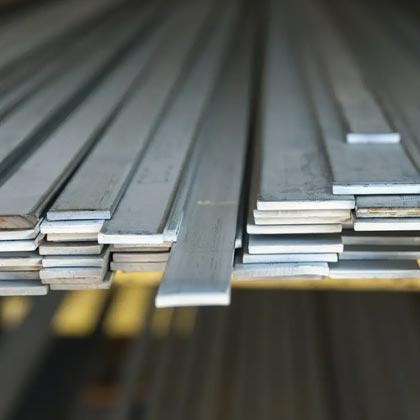

Angle bars and flat bars are essential steel profiles used across construction, fabrication, and manufacturing industries for their simplicity, strength, and versatility. Angle bars (also known as L-angles) provide structural support in frameworks and bracing, while flat bars are widely used in machining, fabrication, and as base plates, brackets, and support elements. These products come in various grades, sizes, and finishes, and are available in hot-rolled or cold-rolled forms to meet diverse structural and functional needs.

Angle and flat bars offer excellent strength-to-weight ratios, making them a cost-effective and reliable choice for structural and support applications. Their easy weldability, versatility, and availability in various materials make them an essential stock item in metalworking, infrastructure, and industrial sectors. These profiles are also ideal for galvanizing and finishing, extending their life in outdoor or corrosive environments.

• High Quality
• Certified
• Cost-Effective
• Industrial Grade
• Ready Stock
• Corrosion-Resistant

Grades

Material	Grade	Standard
Carbon Steel	IS 2062 / ASTM A36	EN 10025 / ASTM A36
Stainless Steel	304 / 304L	ASTM A276
Stainless Steel	316 / 316L	ASTM A276
Aluminum	6061 / 6082	ASTM B221
Galvanized Steel	GI Coated	IS 277 / ASTM A653

Specifications

Specification	Description
Angle Size	25x25x3 mm to 200x200x20 mm
Flat Bar Width	12 mm to 300 mm
Thickness	3 mm to 40 mm
Length	Up to 6 meters or customized
Type	Equal Angle, Unequal Angle, Flat Bars
Finish	Mill Finish, Pickled, Polished, Galvanized
Standards	ASTM, EN, IS, JIS
